270 - heater & blower unit (Denso) for Nissan Vanette Serena KVC23
| |||||||||||||||||||
| Applies for models | Manufacture period | Spec |
|---|---|---|
| *W.FX | 01.1997 - ... | フロント ヒーター |
| *W.FX2 | 01.1998 - ... | フロント ヒーター |

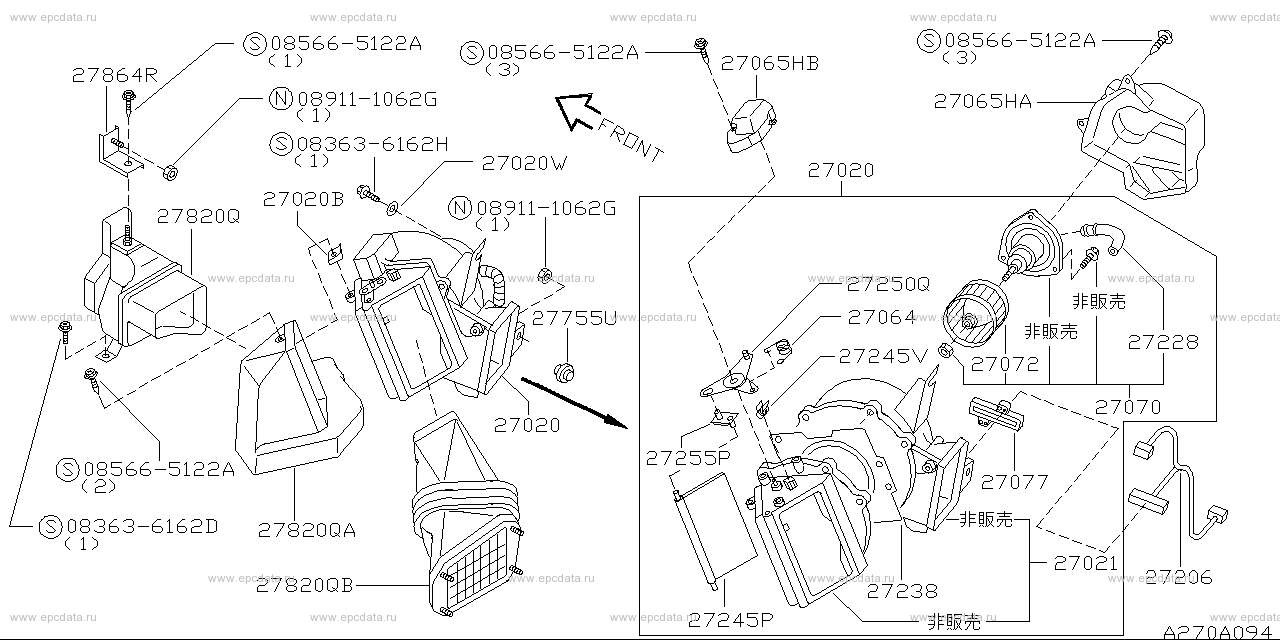

| Applies for models | Manufacture period | Spec |
|---|---|---|
| *W.FX | 01.1997 - ... | ブロア ユニット |
| *W.FX2 | 01.1998 - ... | ブロア ユニット |
| 083636162D 083636162H 085665122A 089111062G 27020 - blower assembly, front 27020B - nut 27020W - washer, plain 27021 - case, blower 27064 - spring, intake door 27065HA - cover, heater blower 27065HB - cover, heater blower 27070 - motor & fan assembly, blower 27072 - fan, blower - 27077 - resistance, electric 27206 - harness assembly, sub 27228 - hose, motor 27238 - bell mouth, intake 27245P - door, intake blower front 27245V - clip 27250Q - lever 27255P - shaft, door intake blower 27755U - protector 27820Q - duct 27820QA - duct 27820QB - duct 27864R - bracket |

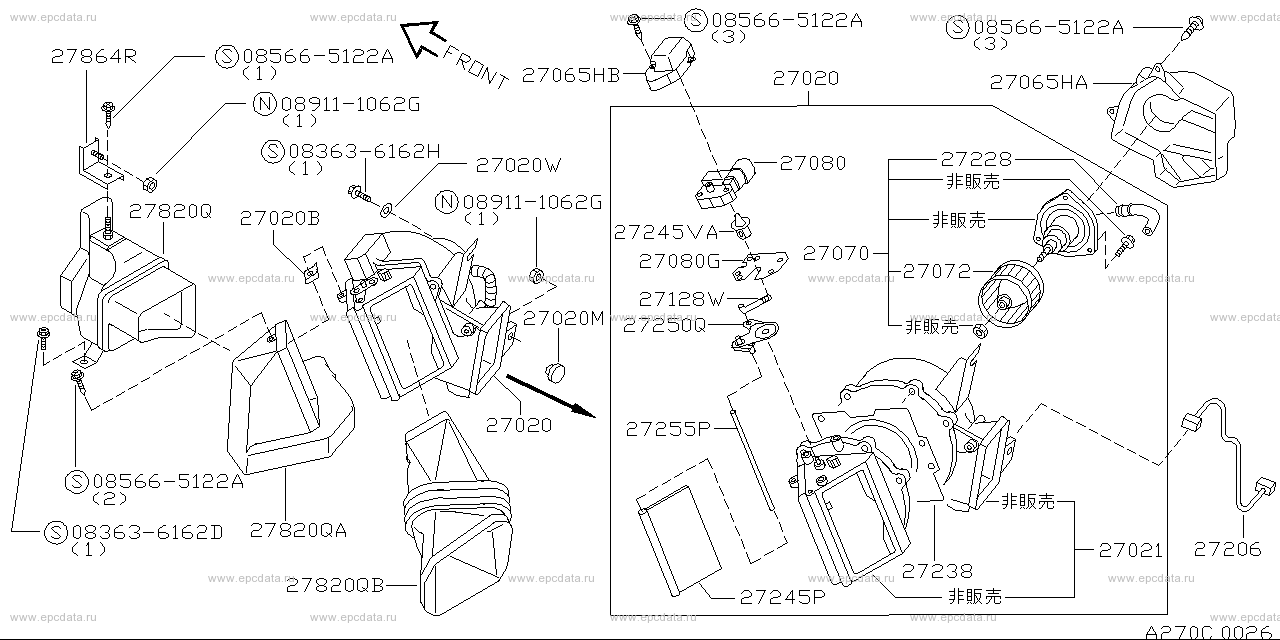

| Applies for models | Manufacture period | Spec |
|---|---|---|
| W.(SR20DE+CD20T) | 08.1995 - 01.1997 | ブロア ユニット |
| W | 01.1997 - 01.1998 | ブロア ユニット |
| W | 01.1998 - ... | ブロア ユニット |
| 083636162D 083636162H 085665122A 089111062G 27020 - blower assembly, front 27020B - nut 27020M - plug 27020W - washer, plain 27021 - case, blower 27065HA - cover, heater blower 27065HB - cover, heater blower 27070 - motor & fan assembly, blower 27072 - fan, blower - 27080 - actuator, air intake 27080G - bracket, actuator 27128W - rod, air door NO 6 27206 - harness assembly, sub 27228 - hose, motor 27238 - bell mouth, intake 27245P - door, intake blower front 27245VA - clip 27250Q - lever 27255P - shaft, door intake blower 27820Q - duct 27820QA - duct 27820QB - duct 27864R - bracket |

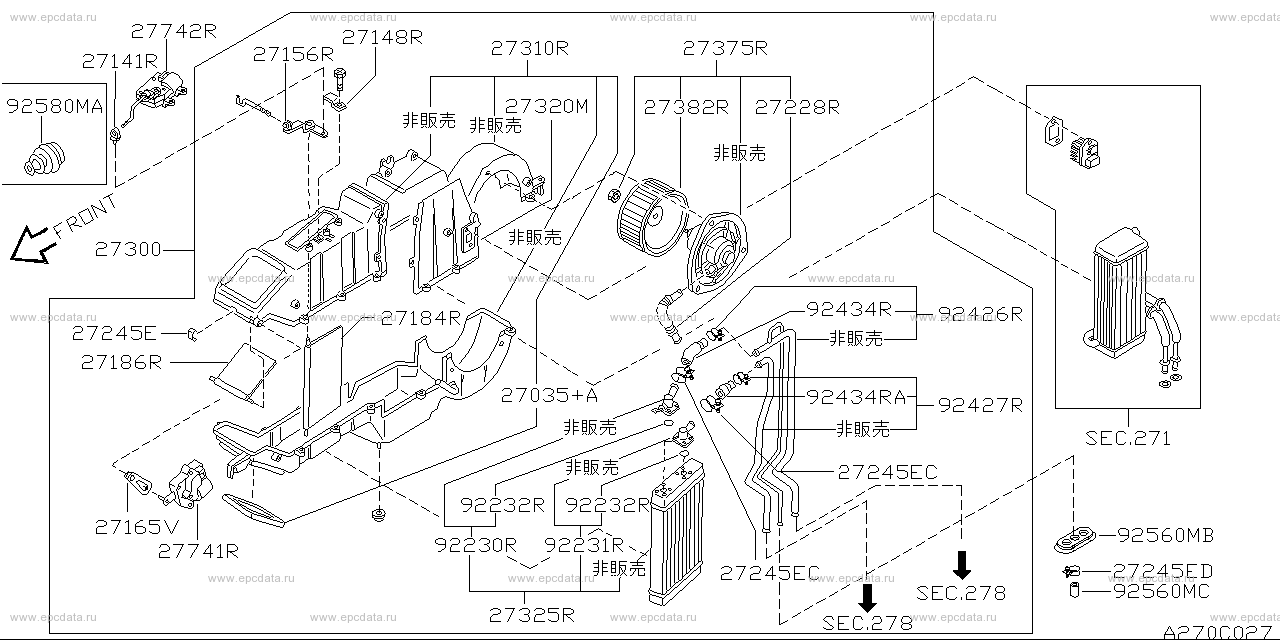

| Applies for models | Manufacture period | Spec |
|---|---|---|
| W.(SR20DE+CD20T) | 08.1995 - 01.1997 | リヤ ヒーター |
| W | 01.1997 - 01.1998 | リヤ ヒーター |
| W | 01.1998 - ... | リヤ ヒーター |
| 27035+A 27141R - holder, rod 27148R - support, rear heater core 27156R - lever, air mix door 27165V - lever, vent 27184R - door, mix 27186R - door, mode 27228R - hose, motor 27245E - clip 27245EC - clip 27245ED - clip 27300 - rear heater unit 27310R - case assembly, rear heater unit 27320M - cover, rear heater 27325R - core assembly, rear heater 27375R - blower assembly, rear 27382R - fan, rear blower 27741R - actuator assembly, mode 27742R - actuator assembly, air mix 92230R - cock assembly, rear heater 92231R - pipe assembly, heater core rear 92232R - packing, heater core pipe rear 92426R - tube assembly, rear heater inlet 92427R - tube assembly, rear heater outlet 92434R - hose, water 92434RA - hose, water 92560MB - grommet rubber 92560MC - grommet rubber 92580MA - grommet, heater |

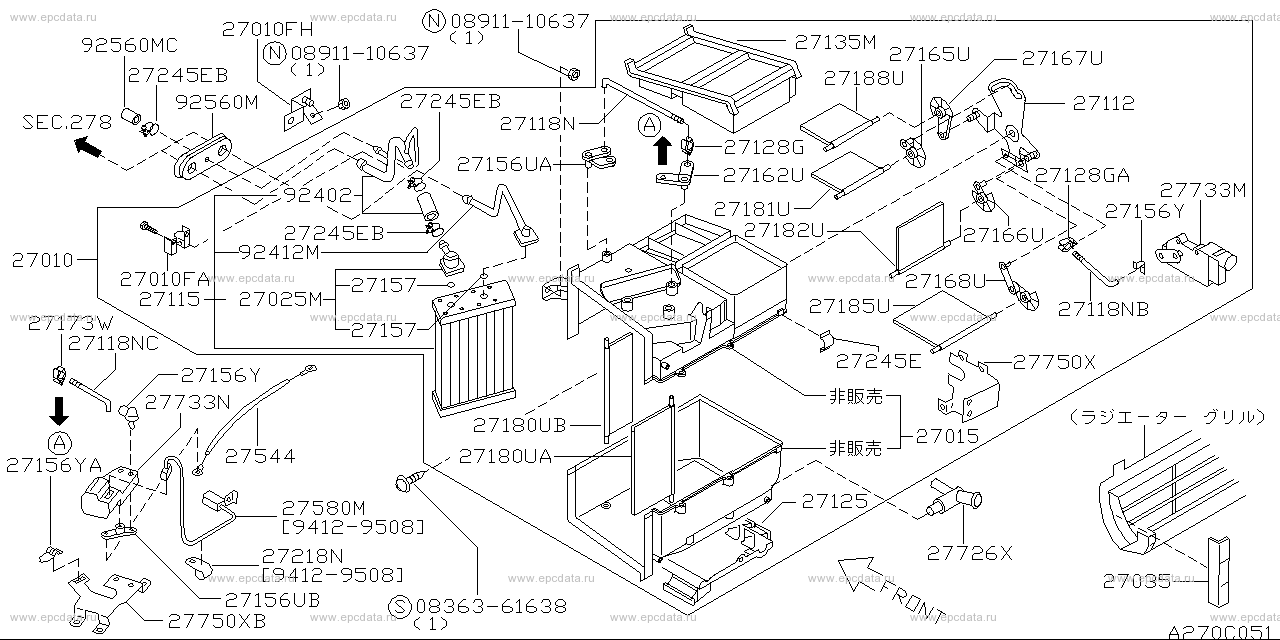

| Applies for models | Manufacture period | Spec |
|---|---|---|
| W.(SR20DE+CD20T) | 08.1995 - 01.1997 | フロント ヒーター |
| W | 01.1997 - 01.1998 | フロント ヒーター |
| W | 01.1998 - ... | フロント ヒーター |
